A groundbreaking 3.2-meter Solvent Printer designed to revolutionize indoor and outdoor signage production. Equipped with 8 high-speed KM heads, it sets a new benchmark for upgradability, guaranteeing peak performance well into the future.
Delivering breathtaking quality at an impressive speed of 2217 sqft/hr, it caters perfectly to both indoor and outdoor requirements.
SoniQ Duo comes with unmatched FGP technology, which ensures extremely less deviation between jet to bed distance < 0.1mm over the entire printing span and maintains consistent print quality.
Enhance printing Precision on the Border of the Media and helps in the smooth change over of carriage direction, leading to less jerk and lesser wear and tear.
Optimized with digital observation of Ink viscosity curve, which helps in maintaining a stable waveform of jetting and ensures constant print quality.
SoniQ Duo offers a fifth button for declogging, which helps in maintaining pressure for efficient cleaning and reducing ink wastage

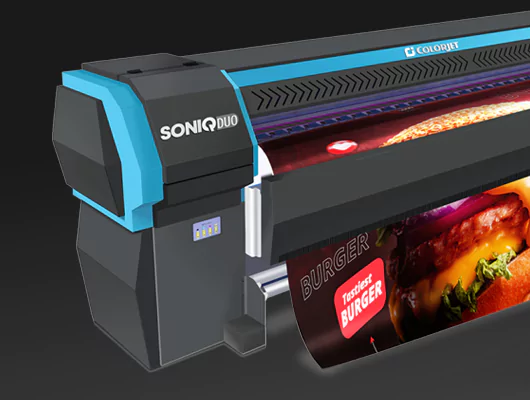

Introducing the SoniQ Duo, a groundbreaking 3.2-meter Solvent Printer designed to revolutionize indoor and outdoor signage production. Equipped with 8 high-speed KM heads, it sets a new benchmark for upgradability, guaranteeing peak performance well into the future. Delivering breathtaking quality at an impressive speed of 2217 sqft/hr, it caters perfectly to both indoor and outdoor requirements.
SoniQ Duo |
|||||
| Model |
SB4412 |
SB8412 |
|||
| Printing Technology |
Drop-on-demand, Piezo electric inkjet |
||||
| Print Heads |
Industrial Grdae Jetting Assemblies |
||||
| No. of Print Heads |
4 |
8 |
|||
| Media | Width |
3300 mm (129 in.) |
|||
| Thickness |
Maximum 3.0 mm (120 mil )with liner (flexible) |
||||
| Roll Outer Diameter |
Maximum 300mm (12inch), 50.8 (2 in) |
||||
| Roll Weight |
Maximum 90 kgs |
||||
| Core Diameter |
76.2mm (3 inch) |
||||
| Types |
SAV, PAV Banner, Backlite Film, Window Film, Fabric (Solvent Base) |
||||
| Printing Width |
Maximum 3200mm (126 inch.) |
||||
| Inks | Types |
Solvent/Mild Solvent inks |
|||
| Color |
4 Colors (CMYK) |
||||
| Printing Resolution (dots per inch) |
Maximum up to 1440 dpi |
||||
| Distance Accuracy |
Error of less than ±0.3 % of distance travelled, or ±0.3 mm, whichever is greater |
||||
| Media Heating System |
Pre-heater and post-heater, setting range for the preset temprature: 30 to 60?. Dryer setting range for the preset temperature : 30 to 60? |
||||
| Connectivity |
High speed USB |
||||
| Power Requirements (Peak) |
AC 220 V ±10%, 20 A, 50/60 Hz |
||||
| Dimensions ( Printer only) |
4700mm X 1000mm X 1450mm(WxDxH) |
||||
| RIP Software |
FlexPrint |
||||
| Weight |
Net Weight : 550 KG, Gross Weight : 742 KG |
||||
| Environmental | Power ON |
Temperature: 18 to 28? Humidity: 20 to 40%RH (non-condensing) |
|||
| Power OFF |
Temperature: 5 to 40? Humidity: 20 to 80%RH (non-condensing) |
||||
| Speed (In Sq. Meter/Hrs) |
Print DPI |
Passes |
Sq Mtrs/Hr |
Sq Feet/Hr |
|
| Mode 1 |
360x360 |
2 |
1232 |
2217 |
|
| Mode 2 |
360x540 |
3 |
830 |
1496 |
|
| Mode 3 |
360x720 |
4 |
664 |
1205 |
|
| Mode 4 |
720x720 |
4 |
348 |
635 |
|
| Mode 5 |
720x1080 |
6 |
232 |
420 |
|
| Mode 6 |
720x1440 |
8 |
177 |
322 |
|
